Chisel And Plane Sharpening Jig Plans

0 ratings

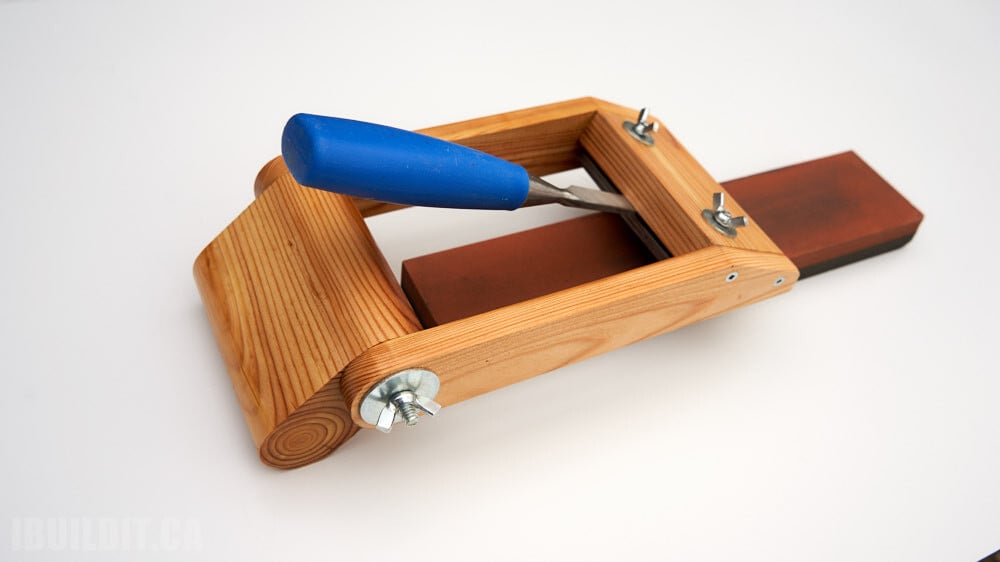

If you have been struggling to get a consistently straight, sharp edge on your chisels and plane blades, this easy to make jig is the answer. It is the only sharpening system you will ever need for putting a razor sharp edge on chisels and plane irons.
The jig will handle chisels and plane blade of any size, up to 2-1/2″ (64mm) wide and give consistent, repeatable quality sharpening results in minutes.
Setup and sharpening time is fast, getting you back quickly to the project you are working on.

I want this!

The plans consist of a materials list, 4 detailed parts drawings showing all of the dimensions and 5 assembly drawings that go through the build process step by step.

For your convenience, this plan has both imperial and metric dimensions, with the metric dimensions (millimeters) in brackets. Screw sizes and other hardware are in imperial units.

Size

818 KB

Length

12 pages
