Quick Release Vise Plans

0 ratings

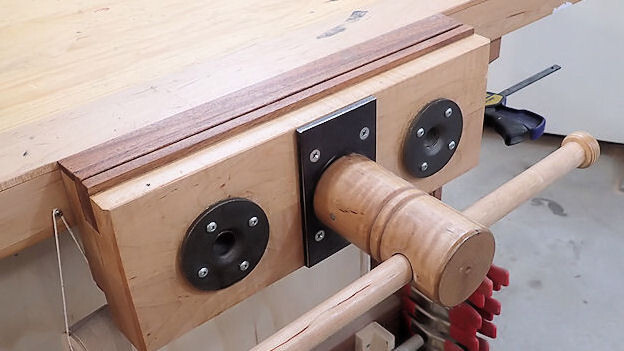

Ready to mount on your workbench, this is an easy to build and very convenient to use quick release vise. It has an 11-1/2″ (292mm) maximum opening (using the hardware lengths in the plans) and is 16″ (406mm) wide overall.
All of the components are commonly available, with no special parts to make. The majority of the vise is constructed from hardwood and 3/4″ (18mm) plywood, using standard hardware.

Add to cart

Plans include 42 detailed drawings covering parts dimension and step-by-step assembly.

For your convenience, this plan has both imperial and metric dimensions, with the metric dimensions (millimeters) in brackets. Screw sizes and other hardware are in imperial units.

Size

6.16 MB

Length

42 pages
